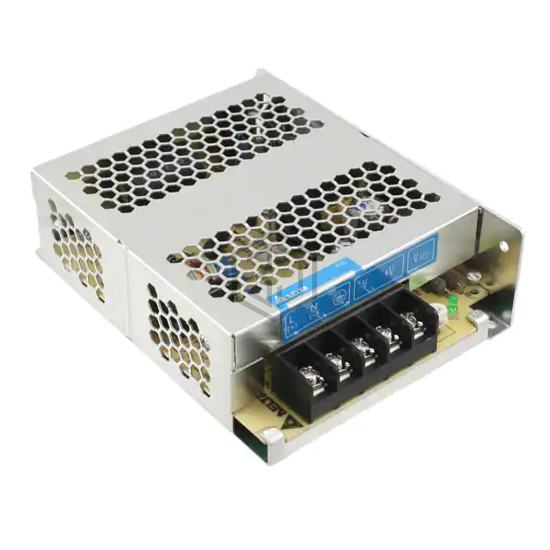

AC/DC CONVERTER 12V 60W
PMC-12V060W1NA is a AC DC Converters manufactured by Delta Electronics. AC/DC CONVERTER 12V 60W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 5.04" L x 3.82" W x 1.50" H (128.0mm x 97.0mm x 38.0mm).
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Type | Enclosed, Conformal Coated |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 60W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 86% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.04" L x 3.82" W x 1.50" H (128.0mm x 97.0mm x 38.0mm) |
| Approval Agency | CB Scheme, CE, EAC, EN, NEC Class 2, SIQ, UL |
| Standard Number | 50581; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3 |
Submit your RFQ for PMC-12V060W1NA and get a quote within 24 hours.
