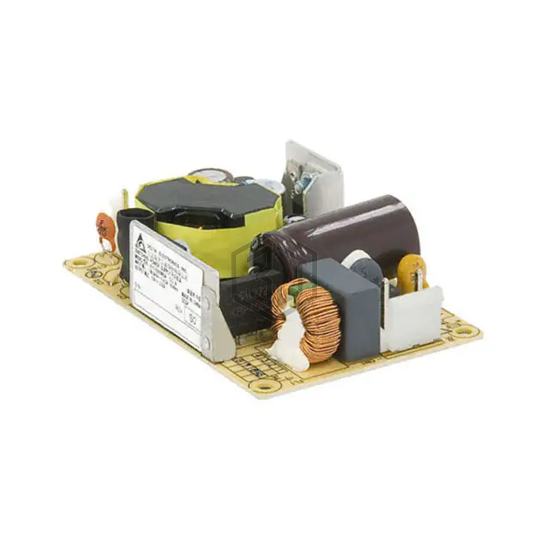

AC/DC CONVERTER 12V 40W
PJT-12V40WBAA is a AC DC Converters manufactured by Delta Electronics. AC/DC CONVERTER 12V 40W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 3.00" L x 2.00" W x 0.90" H (76.2mm x 50.8mm x 22.9mm).
In Stock: 96
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 3.33 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 40W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 86% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.00" L x 2.00" W x 0.90" H (76.2mm x 50.8mm x 22.9mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for PJT-12V40WBAA and get a quote within 24 hours.
