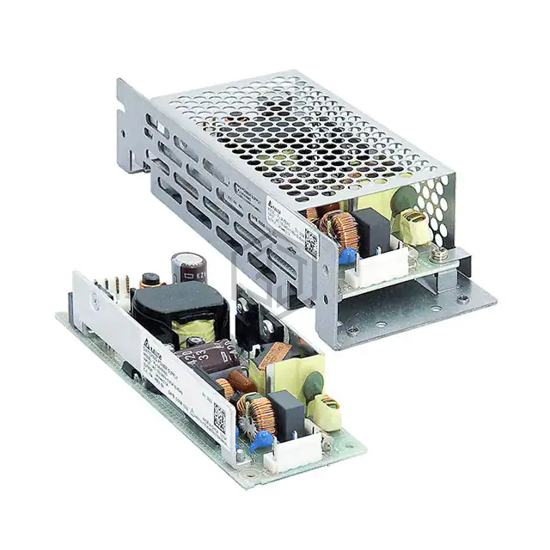

AC/DC CONVERTER 24V 50W
PJ-24V50WLNA is a AC DC Converters manufactured by Delta Electronics. AC/DC CONVERTER 24V 50W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 6.38" L x 2.36" W x 1.42" H (162.0mm x 60.0mm x 36.0mm).
In Stock: 4,549
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 2.1 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 50W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 87% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.38" L x 2.36" W x 1.42" H (162.0mm x 60.0mm x 36.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Standard Number | - |
