DC DC CONVERTER 12V 2W

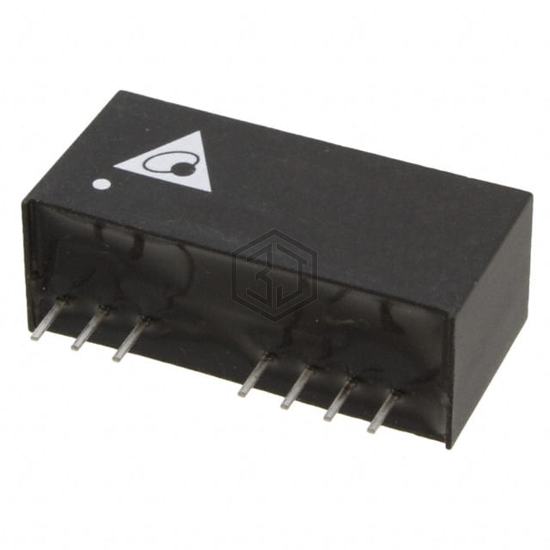

PH02S4812A is a DC DC Converters manufactured by Delta Electronics. DC DC CONVERTER 12V 2W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 9-SIP Module, 7 Leads, current - output (max) 167mA.
In Stock: 100
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 167mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 1.5 kV |
| Applications | Medical |
| Features | Remote On/Off, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 78% |
| Mounting Type | Through Hole |
| Package / Case | 9-SIP Module, 7 Leads |
| Size / Dimension | 1.02" L x 0.36" W x 0.49" H (25.9mm x 9.1mm x 12.4mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for PH02S4812A and get a quote within 24 hours.
