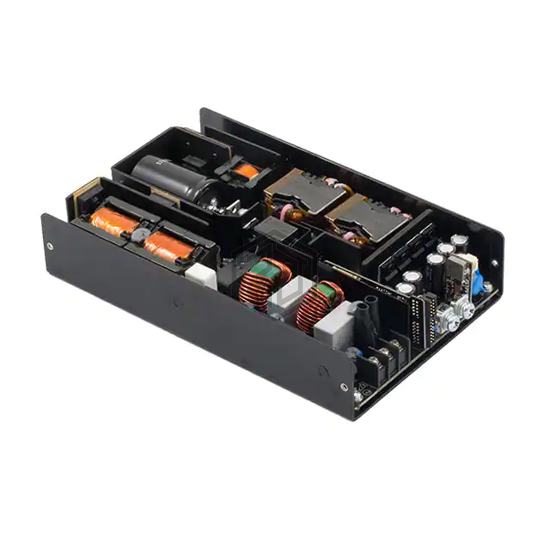

AC/DC CONVERTER 24V 600W
MEU-600C24T AAA is a AC DC Converters manufactured by Delta Electronics. AC/DC CONVERTER 24V 600W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, size / dimension 8.00" L x 5.00" W x 1.57" H (203.2mm x 127.0mm x 40.0mm).
In Stock: 31
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame, Conformal Coated |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 25 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 600W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 93.5% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, PMBUS™, Remote On/Off, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.00" L x 5.00" W x 1.57" H (203.2mm x 127.0mm x 40.0mm) |
| Approval Agency | CB Scheme, CE, EN, SIQ, TUV, UL |
| Standard Number | 50581; 55011; 55032; 60601-1; 60950-1 |
Submit your RFQ for MEU-600C24T AAA and get a quote within 24 hours.
