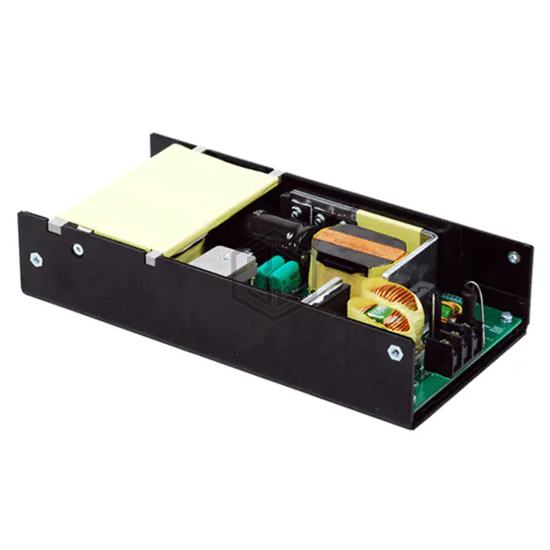

AC/DC CONVERTER 19V 300W
MDS-400AUS19 BA is a AC DC Converters manufactured by Delta Electronics. AC/DC CONVERTER 19V 300W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 7.80" L x 3.82" W x 1.63" H (198.0mm x 97.0mm x 41.5mm).
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 19V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 15.8 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 300W (400W Forced Air) |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 91% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | PFC, Remote Sense, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.80" L x 3.82" W x 1.63" H (198.0mm x 97.0mm x 41.5mm) |
| Approval Agency | CB Scheme, CE, EN, UL |
| Standard Number | 50581; 55011; 55032; 60601-1; 60950-1 |
Submit your RFQ for MDS-400AUS19 BA and get a quote within 24 hours.
