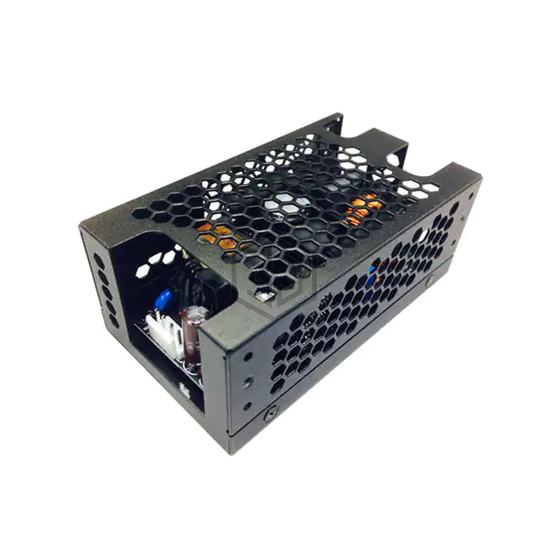

AC/DC CONVERTER 12V 110W
MDS-200ADB12 AA is a AC DC Converters manufactured by Delta Electronics. AC/DC CONVERTER 12V 110W. Key specifications: mounting type Chassis Mount, operating temperature -10°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 4.48" L x 2.55" W x 1.76" H (113.9mm x 64.7mm x 44.7mm).
In Stock: 34
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 9.17 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 110W (200W Forced Air) |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 93% |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Features | PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.48" L x 2.55" W x 1.76" H (113.9mm x 64.7mm x 44.7mm) |
| Approval Agency | CB Scheme, CE, EN, SIQ, TUV, UL |
| Standard Number | 50581; 55011; 55032; 60601-1; 60950-1 |
Submit your RFQ for MDS-200ADB12 AA and get a quote within 24 hours.
