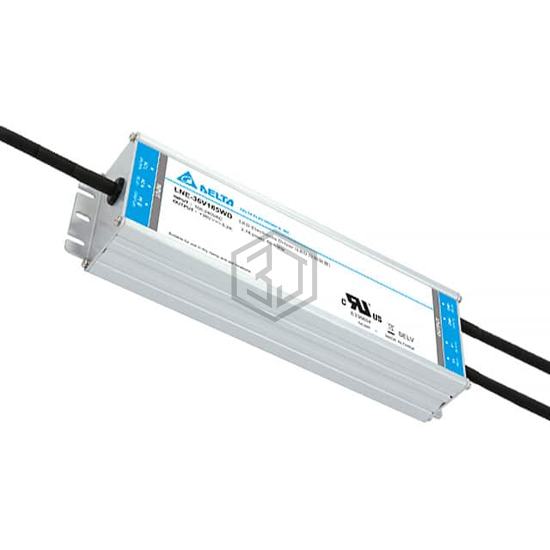

LED DRIVER CC/CV AC/DC 36V 5.2A
LNE-36V185WDAA is a LED Drivers manufactured by Delta Electronics. LED DRIVER CC/CV AC/DC 36V 5.2A. Key specifications: operating temperature -40°C ~ 70°C, voltage - output 18 ~ 36V, current - output (max) 5.2A, size / dimension 8.03" L x 2.68" W x 1.53" H (204.0mm x 68.0mm x 38.8mm).
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 18 ~ 36V |
| Current - Output (Max) | 5.2A |
| Power (Watts) | 185 W |
| Voltage - Isolation | 3.85 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 70°C |
| Efficiency | 93.5% |
| Termination Style | Wire Leads |
| Size / Dimension | 8.03" L x 2.68" W x 1.53" H (204.0mm x 68.0mm x 38.8mm) |
| Approval Agency | UL |
| Standard Number | 50581; 55015; 55024; 61000-3-2; 61000-3-3; 61347-1; 61347-2-13; 62384 |
Submit your RFQ for LNE-36V185WDAA and get a quote within 24 hours.
