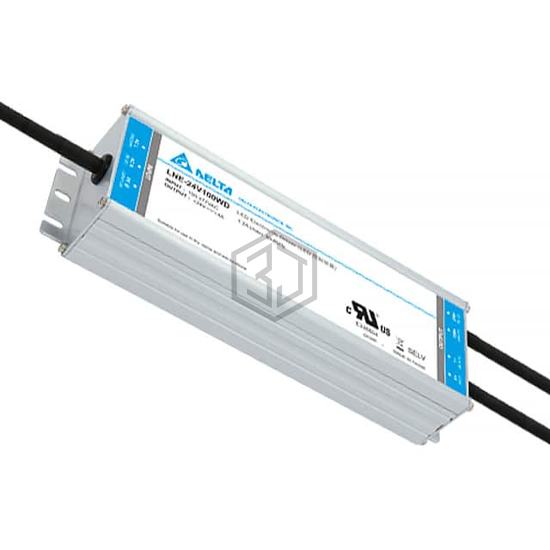

LED DRIVER CC/CV AC/DC 24V 4A
LNE-24V100WDAA is a LED Drivers manufactured by Delta Electronics. LED DRIVER CC/CV AC/DC 24V 4A. Key specifications: operating temperature -40°C ~ 70°C, voltage - output 12 ~ 24V, current - output (max) 4A, size / dimension 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm).
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current, Voltage |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 12 ~ 24V |
| Current - Output (Max) | 4A |
| Power (Watts) | 100 W |
| Voltage - Isolation | 3.85 kV |
| Dimming | Analog, PWM |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 70°C |
| Efficiency | 93% |
| Termination Style | Wire Leads |
| Size / Dimension | 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm) |
| Approval Agency | UL |
| Standard Number | 50581; 55015; 55024; 61000-3-2; 61000-3-3; 61347-1; 61347-2-13; 62384 |
Submit your RFQ for LNE-24V100WDAA and get a quote within 24 hours.
