AC/DC CONVERTER 48V 480W

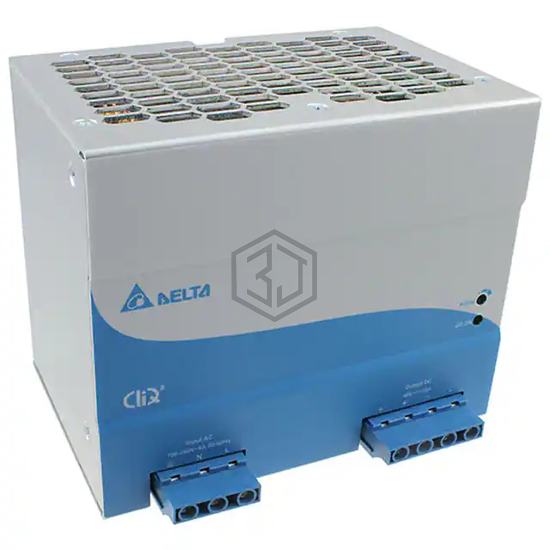

DRP048V480W1BN is a Industrial, DIN Rail Power Supplies manufactured by Delta Electronics. AC/DC CONVERTER 48V 480W. Key specifications: operating temperature -25°C ~ 75°C (With Derating), current - output (max) 10A, size / dimension 5.67" L x 4.67" W x 4.76" H (144.0mm x 118.6mm x 121.0mm), number of outputs 1.
In Stock: 88
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 480W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 93% |
| Operating Temperature | -25°C ~ 75°C (With Derating) |
| Features | Adjustable Output, IP20, Load Sharing, PFC, Universal Input |
| Size / Dimension | 5.67" L x 4.67" W x 4.76" H (144.0mm x 118.6mm x 121.0mm) |
| Approval Agency | CB Scheme, CE, CSA, EAC, EN, SIQ, UL |
| Standard Number | 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2; 61000-6-3; 61010-1; 61204-3; 61558-1; 61558-2-16 |
Submit your RFQ for DRP048V480W1BN and get a quote within 24 hours.
