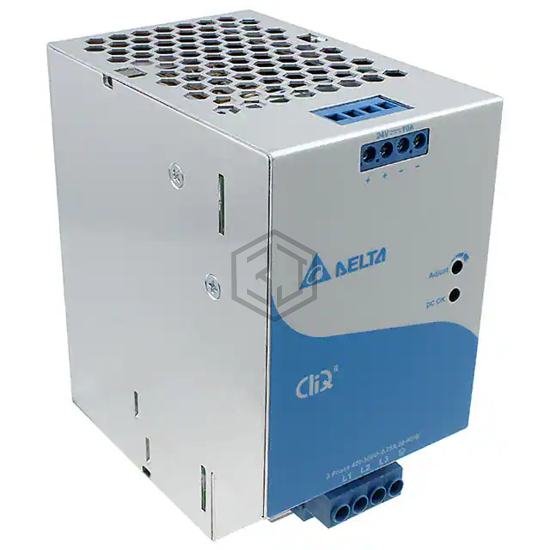

AC/DC CONVERTER 24V 240W
DRP024V240W3BN is a Industrial, DIN Rail Power Supplies manufactured by Delta Electronics. AC/DC CONVERTER 24V 240W. Key specifications: operating temperature -25°C ~ 80°C (With Derating), current - output (max) 10A, size / dimension 4.76" L x 2.76" W x 4.62" H (117.3mm x 70.0mm x 121.0mm), number of outputs 1.
In Stock: 44
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 320 ~ 600 VAC (3 Phase) |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 240W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 92% |
| Operating Temperature | -25°C ~ 80°C (With Derating) |
| Features | Adjustable Output, IP20, Load Sharing, PFC, Universal Input |
| Size / Dimension | 4.76" L x 2.76" W x 4.62" H (117.3mm x 70.0mm x 121.0mm) |
| Approval Agency | CB Scheme, CE, CSA, EAC, EN, SIQ, UL |
| Standard Number | 107.1-01; 213, 12.12.09; 508; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-6-1; 61000-6-2; 61204-3 |
Submit your RFQ for DRP024V240W3BN and get a quote within 24 hours.
