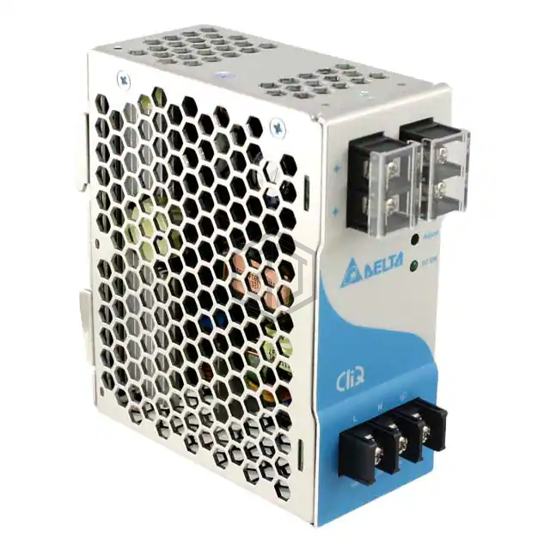

AC/DC CONVERTER 12V 100W
DRP012V100W1AA is a Industrial, DIN Rail Power Supplies manufactured by Delta Electronics. AC/DC CONVERTER 12V 100W. Key specifications: operating temperature -20°C ~ 75°C (With Derating), current - output (max) 8.33A, size / dimension 4.76" L x 1.97" W x 4.65" H (121.0mm x 50.0mm x 118.2mm), number of outputs 1.
In Stock: 42
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 8.33A |
| Power (Watts) | 100W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 87% |
| Operating Temperature | -20°C ~ 75°C (With Derating) |
| Features | Adjustable Output, Load Sharing, Universal Input |
| Size / Dimension | 4.76" L x 1.97" W x 4.65" H (121.0mm x 50.0mm x 118.2mm) |
| Approval Agency | ATEX EN, CB Scheme, CE, CSA, DNV GL, EAC, EN, SIQ, UL |
| Standard Number | 107.1-01; 213, 12.12.09; 508; 50581; 55011; 55024; 55032; 60079-15; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2 |
Submit your RFQ for DRP012V100W1AA and get a quote within 24 hours.
