AC/DC CONVERTER 24V 48W

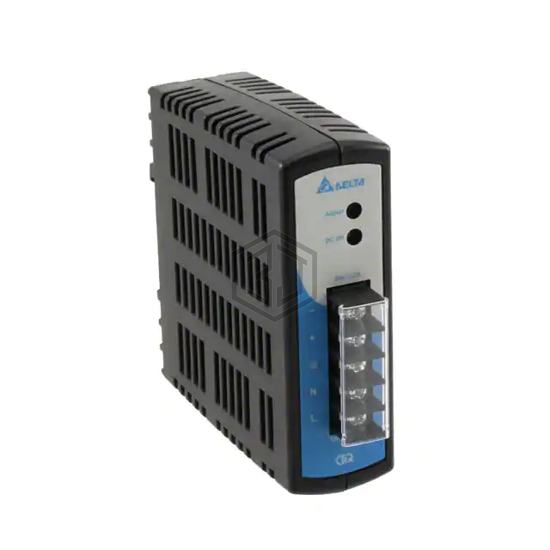

DRP-24V48W1AZ is a Industrial, DIN Rail Power Supplies manufactured by Delta Electronics. AC/DC CONVERTER 24V 48W. Key specifications: operating temperature -20°C ~ 70°C (With Derating), current - output (max) 2A, size / dimension 3.96" L x 1.26" W x 3.94" H (100.6mm x 32.0mm x 100.0mm), number of outputs 1.
In Stock: 3,262
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2A |
| Power (Watts) | 48W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 85% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing, Universal Input |
| Size / Dimension | 3.96" L x 1.26" W x 3.94" H (100.6mm x 32.0mm x 100.0mm) |
| Approval Agency | CB Scheme, CE, CSA, EAC, EN, SIQ, UL |
| Standard Number | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-2 |
Submit your RFQ for DRP-24V48W1AZ and get a quote within 24 hours.
