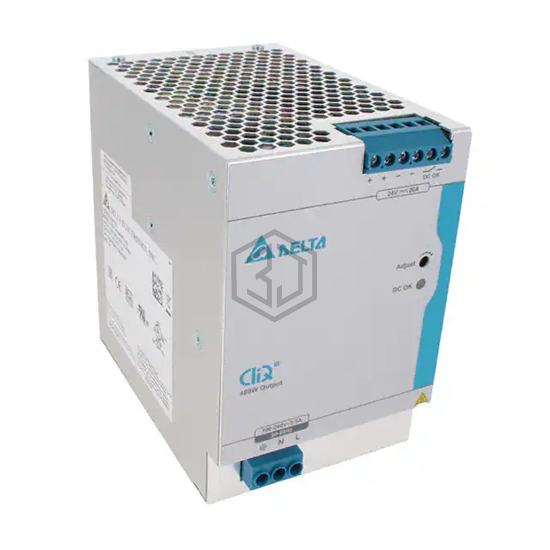

24V 480W DIN RAIL AC INPUT POWER
DRP-24V480W1CAN is a Industrial, DIN Rail Power Supplies manufactured by Delta Electronics. 24V 480W DIN RAIL AC INPUT POWER. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 20A, size / dimension 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm), number of outputs 1.
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 88 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 480W |
| Voltage - Isolation | 4 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 94% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Universal Input |
| Size / Dimension | 5.00" L x 3.23" W x 4.88" H (127.0mm x 82.0mm x 124.0mm) |
| Approval Agency | CB, CE, cULus, cURus, EAC, SIQ |
| Standard Number | - |
