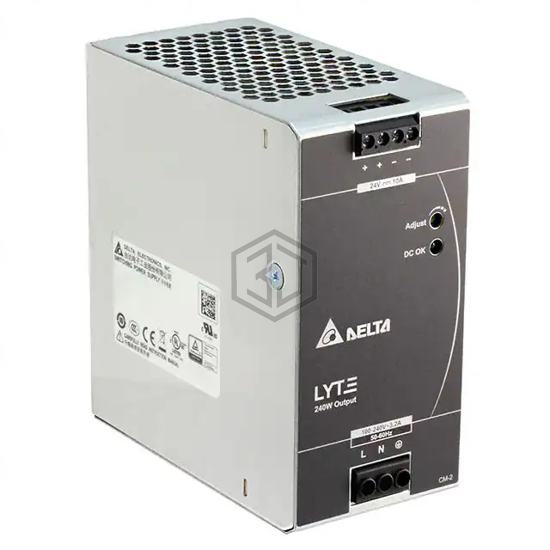

AC/DC CONVERTER 24V 240W
DRL-24V240W1AA is a Industrial, DIN Rail Power Supplies manufactured by Delta Electronics. AC/DC CONVERTER 24V 240W. Key specifications: operating temperature -20°C ~ 70°C (With Derating), current - output (max) 10A, size / dimension 4.63" L x 2.36" W x 4.87" H (117.6mm x 60.0mm x 123.6mm), number of outputs 1.
In Stock: 161
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 240W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 90% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20, Load Sharing, PFC, Universal Input |
| Size / Dimension | 4.63" L x 2.36" W x 4.87" H (117.6mm x 60.0mm x 123.6mm) |
| Approval Agency | CB, CCC, CE, cURus, TUV |
| Standard Number | - |
Submit your RFQ for DRL-24V240W1AA and get a quote within 24 hours.
