AC/DC CONVERTER 12V 72W

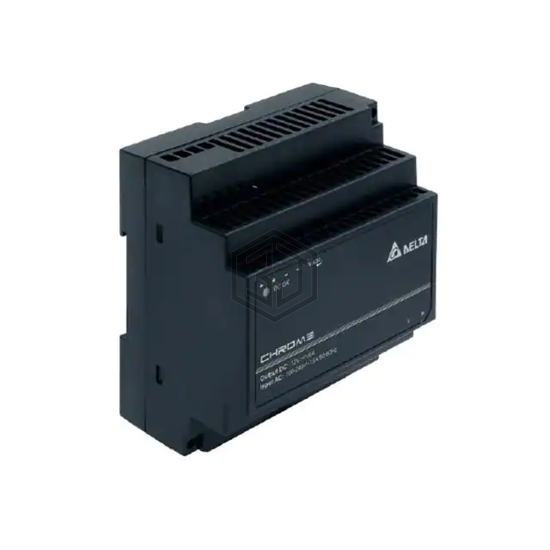

DRC-12V100W1AZ is a Industrial, DIN Rail Power Supplies manufactured by Delta Electronics. AC/DC CONVERTER 12V 72W. Key specifications: operating temperature -25°C ~ 71°C (With Derating), current - output (max) 6A, size / dimension 3.58" L x 3.54" W x 2.19" H (90.9mm x 89.9mm x 55.6mm), number of outputs 1.
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 72W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 86% |
| Operating Temperature | -25°C ~ 71°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 3.58" L x 3.54" W x 2.19" H (90.9mm x 89.9mm x 55.6mm) |
| Approval Agency | CB Scheme, CE, EAC, EN, SIQ, UL |
| Standard Number | 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 61000-6-2; 61000-6-3; 61000-6-4; 61204-3; 62368-1 |
