DC DC CONVERTER 0.7525-5V 50W

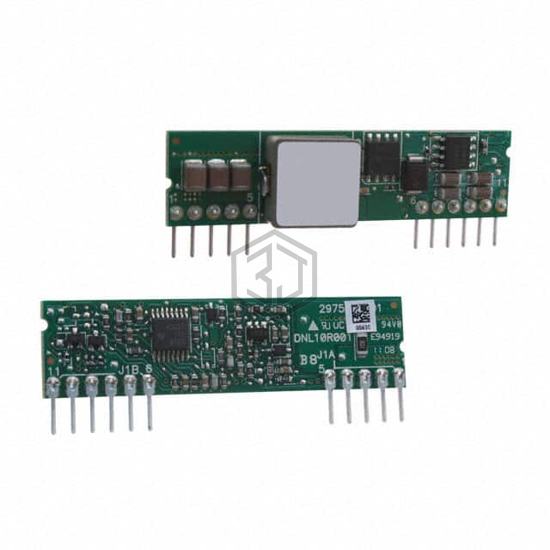

DNM10S0A0R10NFD is a DC DC Converters manufactured by Delta Electronics. DC DC CONVERTER 0.7525-5V 50W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 120°C, package / case 11-SIP Module, current - output (max) 10A.
In Stock: 300
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8.3V |
| Voltage - Input (Max) | 14V |
| Voltage - Output 1 | 0.7525 ~ 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 10A |
| Power (Watts) | 50 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 120°C |
| Efficiency | 93% |
| Mounting Type | Through Hole |
| Package / Case | 11-SIP Module |
| Size / Dimension | 2.00" L x 0.37" W x 0.50" H (50.8mm x 9.5mm x 12.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for DNM10S0A0R10NFD and get a quote within 24 hours.
