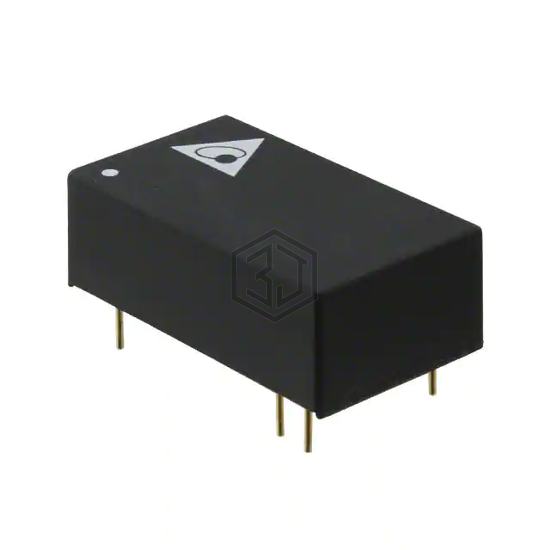

DC DC CONVERTER 3.3V 2W
DB02S1203A is a DC DC Converters manufactured by Delta Electronics. DC DC CONVERTER 3.3V 2W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 80°C, package / case 16-DIP Module, 6 Leads, current - output (max) 500mA.
In Stock: 3,849
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 1.5 kV |
| Applications | Medical |
| Features | SCP, UVLO |
| Operating Temperature | -40°C ~ 80°C |
| Efficiency | 73% |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP Module, 6 Leads |
| Size / Dimension | 0.94" L x 0.54" W x 0.30" H (23.9mm x 13.7mm x 7.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for DB02S1203A and get a quote within 24 hours.
