DC DC CONVERTER +/-12V 2W

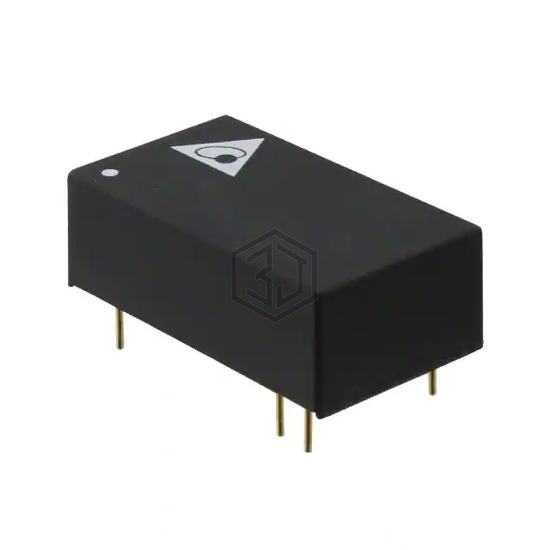

DB02D2412A is a DC DC Converters manufactured by Delta Electronics. DC DC CONVERTER +/-12V 2W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 80°C, package / case 16-DIP Module, 6 Leads, current - output (max) 83mA, 83mA.
In Stock: 21
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 83mA, 83mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 1.5 kV |
| Applications | Medical |
| Features | SCP, UVLO |
| Operating Temperature | -40°C ~ 80°C |
| Efficiency | 78% |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP Module, 6 Leads |
| Size / Dimension | 0.94" L x 0.54" W x 0.30" H (23.9mm x 13.7mm x 7.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for DB02D2412A and get a quote within 24 hours.
