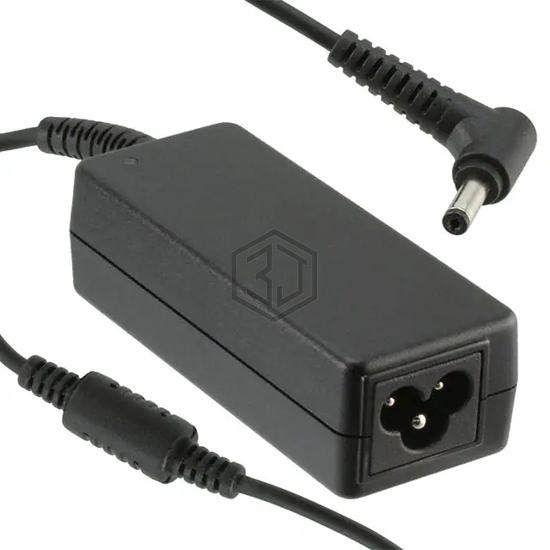

AC/DC DESKTOP ADAPTER 12V 36W
ADP-36PH BH is a AC DC Desktop, Wall Adapters manufactured by Delta Electronics. AC/DC DESKTOP ADAPTER 12V 36W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 3A, size / dimension 3.52" L x 1.46" W x 1.04" H (89.5mm x 37.0mm x 26.5mm).
In Stock: 700
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 12V |
| Current - Output (Max) | 3A |
| Power (Watts) | 36 W |
| No Load Power Consumption | 100mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial) |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug, 1.7mm I.D. x 4.75mm O.D. x 12.0mm |
| Cord Length | 70.9" (1.80m) |
| Input Connector | IEC 320-C6 |
| Features | - |
| Size / Dimension | 3.52" L x 1.46" W x 1.04" H (89.5mm x 37.0mm x 26.5mm) |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for ADP-36PH BH and get a quote within 24 hours.
