FIXED IND 68UH 3.2A 211MOHM SMD

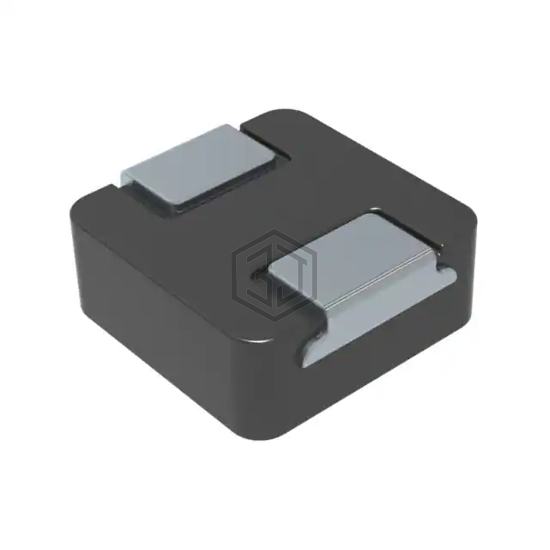

VCMI105T-680MS5 is a Fixed Inductors manufactured by Delta Electronics/Cyntec. FIXED IND 68UH 3.2A 211MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 155°C, package / case Nonstandard, current rating (amps) 3.2 A.
In Stock: 152
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal |
| Inductance | 68 µH |
| Tolerance | ±3% |
| Current Rating (Amps) | 3.2 A |
| Current - Saturation (Isat) | 3.9A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 211mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.427" L x 0.394" W (10.85mm x 10.00mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for VCMI105T-680MS5 and get a quote within 24 hours.
