FIXED IND 1UH 8.9A 10.5MOHM SMD

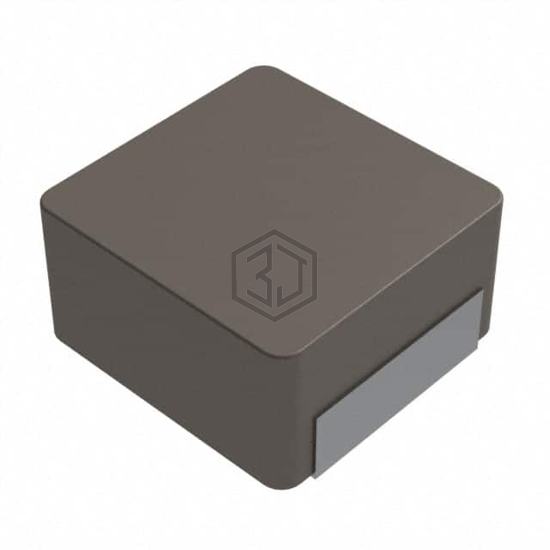

VCHA042A-1R0MS6 is a Fixed Inductors manufactured by Delta Electronics/Cyntec. FIXED IND 1UH 8.9A 10.5MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 165°C, package / case Nonstandard, current rating (amps) 8.9 A.
In Stock: 2,486
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 8.9 A |
| Current - Saturation (Isat) | 6.7A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 10.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 165°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.165" L x 0.157" W (4.20mm x 4.00mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
