FIXED IND 4.7UH 1.08A 323MOHM SM

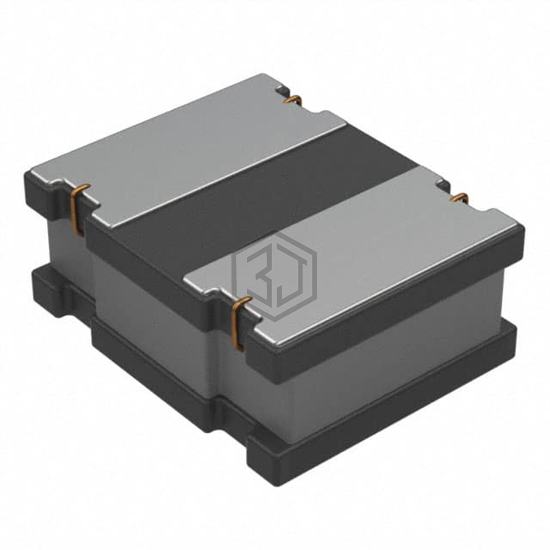

SDET25201T-4R7MS is a Fixed Inductors manufactured by Delta Electronics/Cyntec. FIXED IND 4.7UH 1.08A 323MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 1.08 A.
In Stock: 5,881
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.08 A |
| Current - Saturation (Isat) | 1.08A |
| Shielding | Shielded |
| DC Resistance (DCR) | 323mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for SDET25201T-4R7MS and get a quote within 24 hours.
