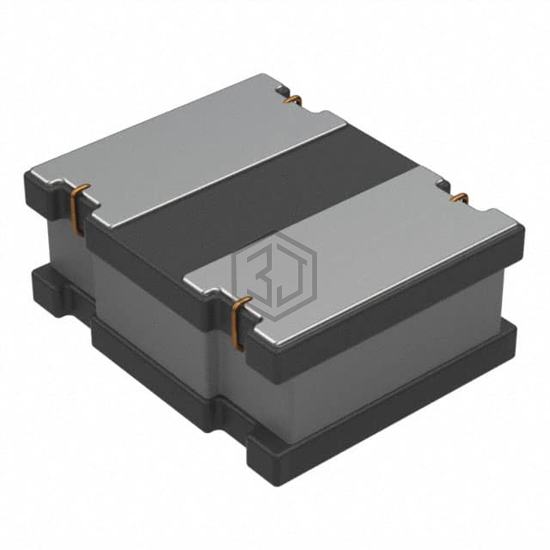

FIXED IND 2.2UH 1.36A 199MOHM SM
SDET25200H-2R2MS is a Fixed Inductors manufactured by Delta Electronics/Cyntec. FIXED IND 2.2UH 1.36A 199MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1008 (2520 Metric), current rating (amps) 1.36 A.
In Stock: 3,541
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.36 A |
| Current - Saturation (Isat) | 1.02A |
| Shielding | Shielded |
| DC Resistance (DCR) | 199mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
Submit your RFQ for SDET25200H-2R2MS and get a quote within 24 hours.
