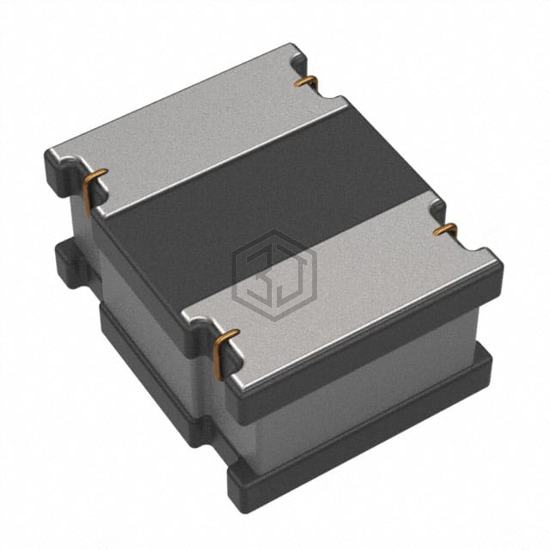

FIXED IND 470NH 3.4A 41MOHM SMD
SDEM20161T-R47MS is a Fixed Inductors manufactured by Delta Electronics/Cyntec. FIXED IND 470NH 3.4A 41MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 0806 (2016 Metric), current rating (amps) 3.4 A.
In Stock: 4,425
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3.4 A |
| Current - Saturation (Isat) | 3.9A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 41mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
Submit your RFQ for SDEM20161T-R47MS and get a quote within 24 hours.
