FIXED IND 1UH 1.05A 201MOHM SMD

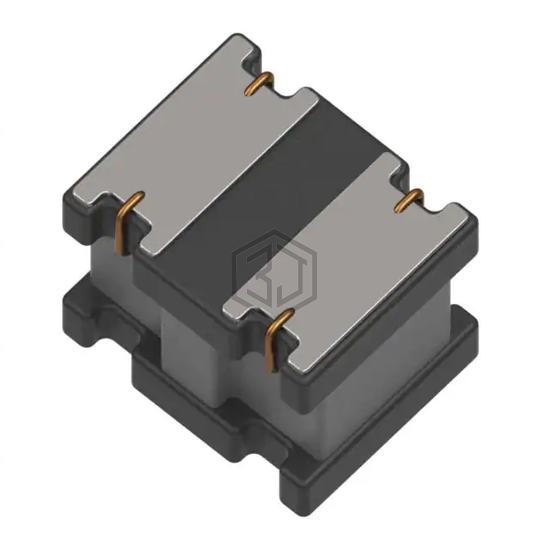

SDEB12101T-1R0MSD is a Fixed Inductors manufactured by Delta Electronics/Cyntec. FIXED IND 1UH 1.05A 201MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case Nonstandard, current rating (amps) 1.05 A.
In Stock: 2,081
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.05 A |
| Current - Saturation (Isat) | 1.04A |
| Shielding | Shielded |
| DC Resistance (DCR) | 201mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.049" L x 0.039" W (1.25mm x 1.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
