FIXED IND 470NH 5.8A 22 OHM SMD

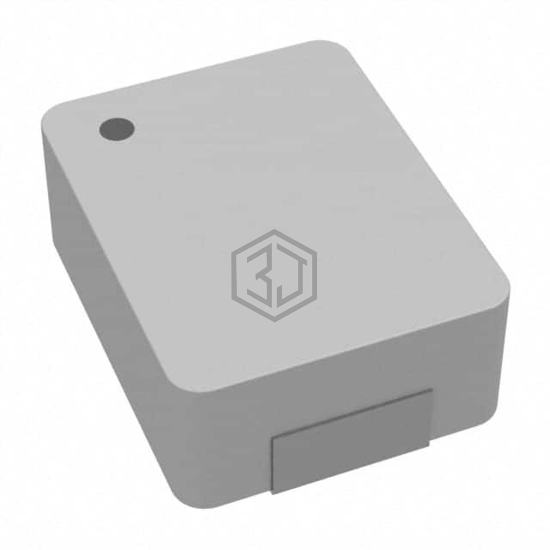

HMLQ32251B-R47MS is a Fixed Inductors manufactured by Delta Electronics/Cyntec. FIXED IND 470NH 5.8A 22 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 1210 (3225 Metric), current rating (amps) 5.8 A.
In Stock: 2,266
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | Metal |
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.8 A |
| Current - Saturation (Isat) | 7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 22Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.047" (1.20mm) |
Submit your RFQ for HMLQ32251B-R47MS and get a quote within 24 hours.
