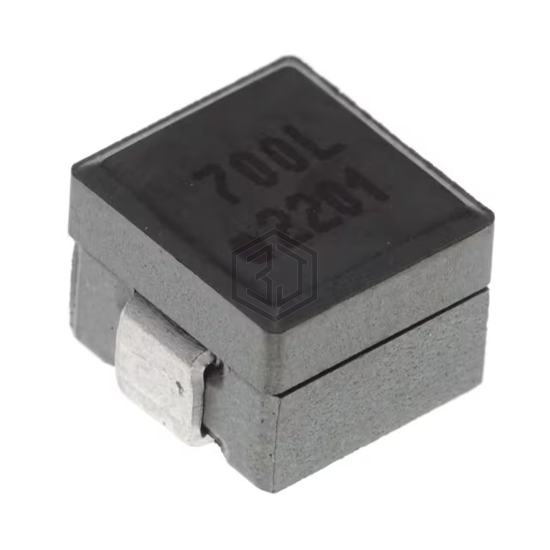

FIXED IND 70NH 48A 0.19MOHM SMD
HCB0750-700L is a Fixed Inductors manufactured by Delta Electronics/Components. FIXED IND 70NH 48A 0.19MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 48 A.
In Stock: 1,701
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | - |
| Material - Core | - |
| Inductance | 70 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 48 A |
| Current - Saturation (Isat) | 75A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.19mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.283" L x 0.276" W (7.20mm x 7.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
Submit your RFQ for HCB0750-700L and get a quote within 24 hours.
