FIXED IND 8.7NH 400MA 210MOHM SM

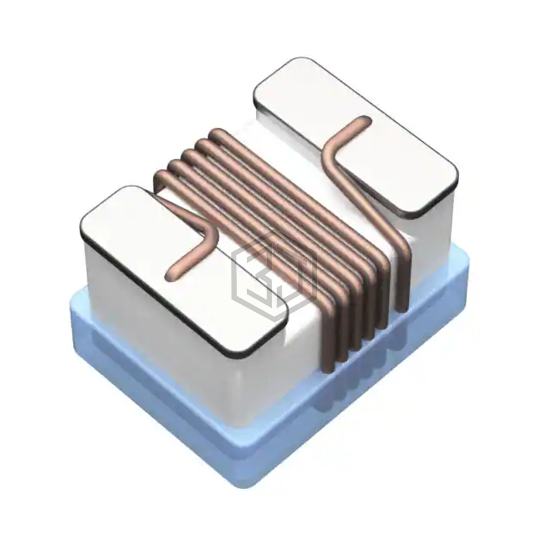

0805CS-8N7EKTS is a Fixed Inductors manufactured by Delta Electronics/Components. FIXED IND 8.7NH 400MA 210MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 0805 (2012 Metric), current rating (amps) 400 mA.
In Stock: 3,982
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 8.7 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 210mOhm |
| Q @ Freq | 50 @ 1GHz |
| Frequency - Self Resonant | 4GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 0.090" L x 0.071" W (2.29mm x 1.80mm) |
| Height - Seated (Max) | 0.061" (1.55mm) |
Submit your RFQ for 0805CS-8N7EKTS and get a quote within 24 hours.
