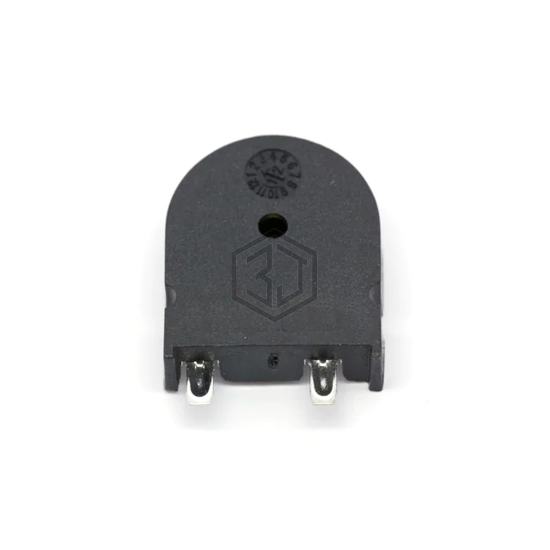

TP222009-1 - DB Unlimited - Alarms, Buzzers, and Sirens

TP222009-1

DB Unlimited

BUZZER PIEZO 9V 22X7MM TH

TP222009-1 is a Alarms, Buzzers, and Sirens manufactured by DB Unlimited. BUZZER PIEZO 9V 22X7MM TH. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 80°C, voltage - rated 9 V, current - supply 3mA.

In Stock: 4,467

Product Attributes

AttributeValue
Product StatusActive
Driver CircuitryTransducer, Externally Driven
Input TypePeak-Peak Signal
Voltage - Rated9 V
Voltage Range1 ~ 30V
Frequency2kHz
TechnologyPiezo
Operating Mode-
Duration-
Sound Pressure Level (SPL)85dB @ 9V, 10cm
Current - Supply3mA
Port LocationSide
Operating Temperature-20°C ~ 80°C
Approval Agency-
Ratings-
Ingress Protection-
Mounting TypeThrough Hole
TerminationPC Pins
Size / Dimension0.866" L x 0.276" W (22.00mm x 7.00mm)
Height - Seated (Max)1.063" (27.00mm)

Frequently Asked Questions

TP222009-1 is a Alarms, Buzzers, and Sirens manufactured by DB Unlimited. BUZZER PIEZO 9V 22X7MM TH

The mounting type of TP222009-1 is Through Hole.

The operating temperature range of TP222009-1 is -20°C ~ 80°C.

The supply voltage of TP222009-1 is 9 V.
