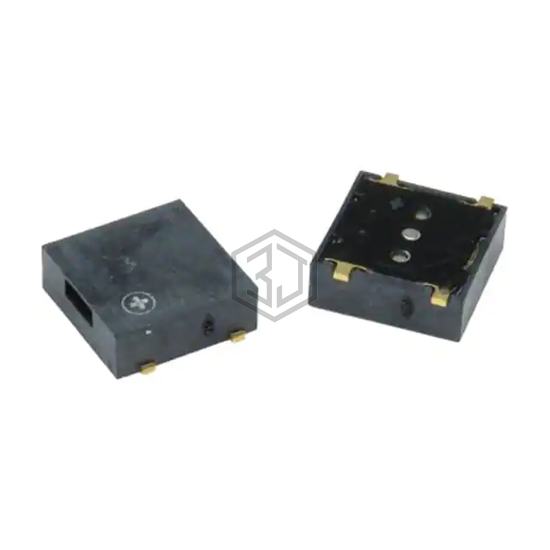

BUZZER ELECTRO 3.6V 10X10MM SMD
TE102803-1 is a Alarms, Buzzers, and Sirens manufactured by DB Unlimited. BUZZER ELECTRO 3.6V 10X10MM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 70°C, voltage - rated 3.6 V, current - supply 100mA.
In Stock: 2,818
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 3.6 V |
| Voltage Range | 3 ~ 4.5V |
| Frequency | 2.83kHz |
| Technology | Electromechanical |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 93dB @ 3.6V, 10cm |
| Current - Supply | 100mA |
| Port Location | Side |
| Operating Temperature | -20°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Height - Seated (Max) | 0.146" (3.70mm) |
