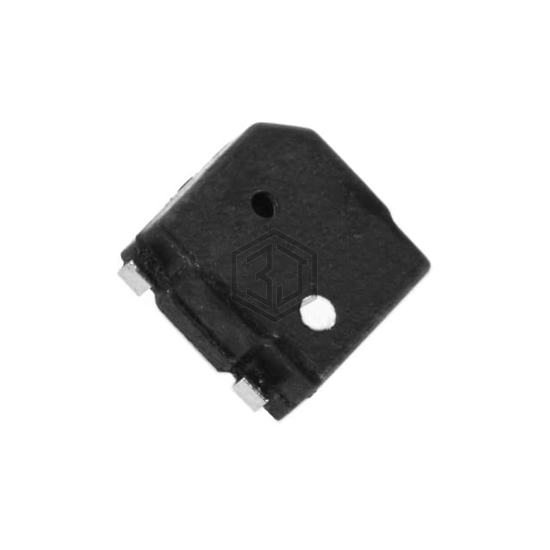

BUZZER ELECTRO 3V 5X5MM SMD
TE054003-1 is a Alarms, Buzzers, and Sirens manufactured by DB Unlimited. BUZZER ELECTRO 3V 5X5MM SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 70°C, voltage - rated 3 V, current - supply 100mA.
In Stock: 74,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Transducer, Externally Driven |
| Input Type | Zero-Peak Signal |
| Voltage - Rated | 3 V |
| Voltage Range | 2 ~ 4V |
| Frequency | 4kHz |
| Technology | Electromechanical |
| Operating Mode | - |
| Duration | - |
| Sound Pressure Level (SPL) | 78dB @ 3V, 10cm |
| Current - Supply | 100mA |
| Port Location | Top |
| Operating Temperature | -30°C ~ 70°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Termination | Solder Pads |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
