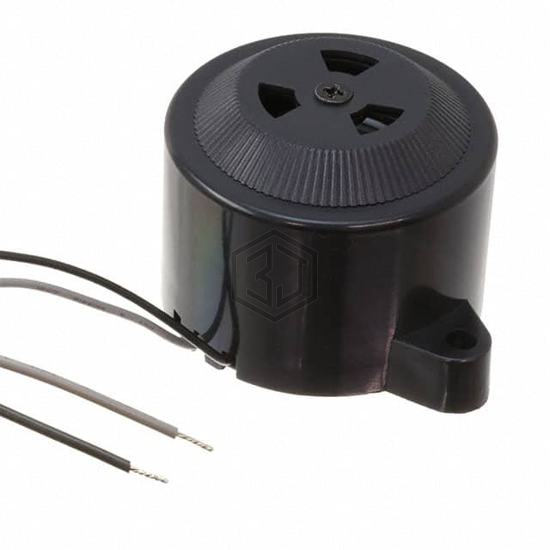

IP503012-1 - DB Unlimited - Alarms, Buzzers, and Sirens

IP503012-1

DB Unlimited

BUZZER PIEZO 12V 50MM FLANGE

IP503012-1 is a Alarms, Buzzers, and Sirens manufactured by DB Unlimited. BUZZER PIEZO 12V 50MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 60°C, voltage - rated 12 V, current - supply 65mA.

In Stock: 11

Product Attributes

AttributeValue
Product StatusActive
Driver CircuitryIndicator, Internally Driven
Input TypeDC
Voltage - Rated12 V
Voltage Range6 ~ 16V
Frequency3.2kHz
TechnologyPiezo
Operating ModeDual Tone
Duration-
Sound Pressure Level (SPL)115dB @ 12V, 10cm
Current - Supply65mA
Port LocationTop
Operating Temperature-20°C ~ 60°C
Approval Agency-
Ratings-
Ingress Protection-
Mounting TypePanel Mount, Flange
TerminationWire Leads
Size / Dimension1.969" Dia (50.00mm)
Height - Seated (Max)1.496" (38.00mm)

Frequently Asked Questions

IP503012-1 is a Alarms, Buzzers, and Sirens manufactured by DB Unlimited. BUZZER PIEZO 12V 50MM FLANGE

The mounting type of IP503012-1 is Panel Mount, Flange.

The operating temperature range of IP503012-1 is -20°C ~ 60°C.

The supply voltage of IP503012-1 is 12 V.
