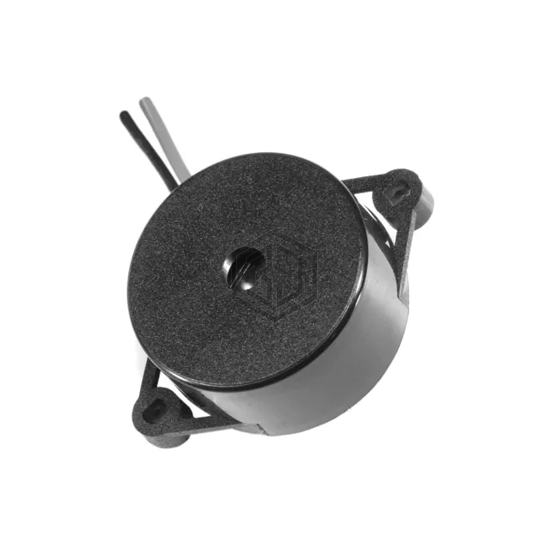

BUZZER PIEZO 12V 22MM FLANGE
IP224512-1 is a Alarms, Buzzers, and Sirens manufactured by DB Unlimited. BUZZER PIEZO 12V 22MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 60°C, voltage - rated 12 V, current - supply 3mA.
In Stock: 610
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driver Circuitry | Indicator, Internally Driven |
| Input Type | DC |
| Voltage - Rated | 12 V |
| Voltage Range | 3 ~ 30V |
| Frequency | 4.5kHz |
| Technology | Piezo |
| Operating Mode | Single Tone |
| Duration | - |
| Sound Pressure Level (SPL) | 95dB @ 12V, 10cm |
| Current - Supply | 3mA |
| Port Location | Top |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | - |
| Ratings | - |
| Ingress Protection | - |
| Mounting Type | Panel Mount, Flange |
| Termination | Wire Leads |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.425" (10.80mm) |
Submit your RFQ for IP224512-1 and get a quote within 24 hours.
