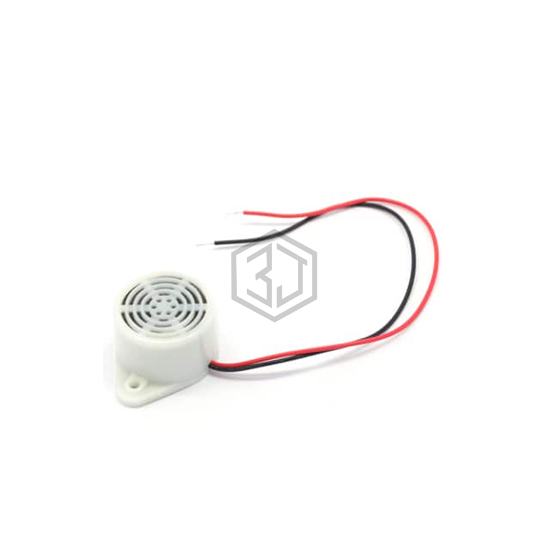

IE260424-3 - DB Unlimited - Alarms, Buzzers, and Sirens

IE260424-3

DB Unlimited

BUZZER ELECTRO 24V 26.4MM FLANGE

IE260424-3 is a Alarms, Buzzers, and Sirens manufactured by DB Unlimited. BUZZER ELECTRO 24V 26.4MM FLANGE. Key specifications: mounting type Panel Mount, Flange, operating temperature -20°C ~ 60°C, voltage - rated 24 V, current - supply 21mA.

In Stock: 9,330

Product Attributes

AttributeValue
Product StatusActive
Driver CircuitryIndicator, Internally Driven
Input TypeDC
Voltage - Rated24 V
Voltage Range20 ~ 28V
Frequency400Hz
TechnologyElectromechanical
Operating ModeSingle Tone
Duration-
Sound Pressure Level (SPL)95dB @ 24V, 10cm
Current - Supply21mA
Port LocationTop
Operating Temperature-20°C ~ 60°C
Approval Agency-
Ratings-
Ingress Protection-
Mounting TypePanel Mount, Flange
TerminationWire Leads
Size / Dimension1.039" Dia (26.40mm)
Height - Seated (Max)0.705" (17.90mm)

Frequently Asked Questions

IE260424-3 is a Alarms, Buzzers, and Sirens manufactured by DB Unlimited. BUZZER ELECTRO 24V 26.4MM FLANGE

The mounting type of IE260424-3 is Panel Mount, Flange.

The operating temperature range of IE260424-3 is -20°C ~ 60°C.

The supply voltage of IE260424-3 is 24 V.
