DC/DC CONVERTER 4 WATTS MEDICAL

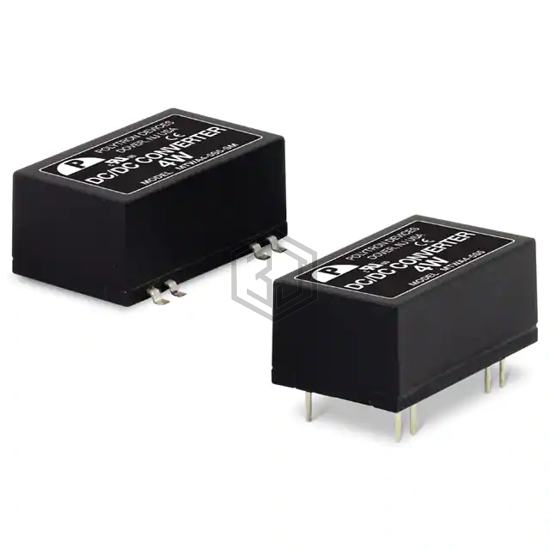

MTWA4-48S24-SM is a DC DC Converters manufactured by Daburn Electronics. DC/DC CONVERTER 4 WATTS MEDICAL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (With Derating), package / case 16-SMD Module, 7 Leads, current - output (max) 146mA.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 146mA |
| Power (Watts) | 3.5 W |
| Voltage - Isolation | 5 kV |
| Applications | ITE (Commercial), Medical |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 82% |
| Mounting Type | Surface Mount |
| Package / Case | 16-SMD Module, 7 Leads |
| Size / Dimension | 0.96" L x 0.57" W x 0.41" H (24.3mm x 14.4mm x 10.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, UL |
| Standard Number | - |
Submit your RFQ for MTWA4-48S24-SM and get a quote within 24 hours.
