10 POS 1.00MM(.039) SINGLE ROW S

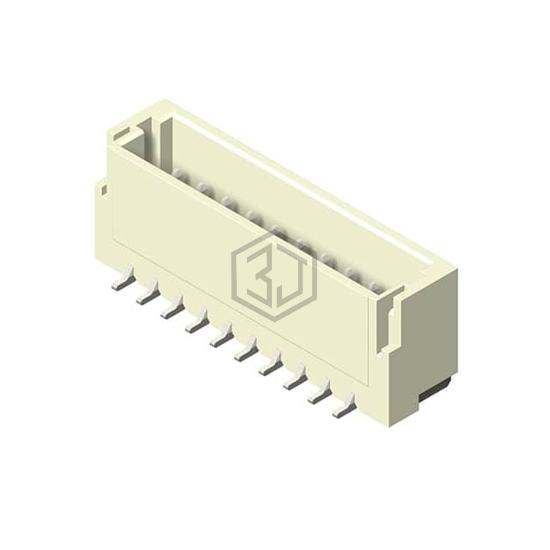

CI1110M1VR0-NH is a Rectangular Connectors - Headers, Male Pins manufactured by Cvilux USA. 10 POS 1.00MM(.039) SINGLE ROW S. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, voltage rating 50VAC, contact material Phosphor Bronze.
In Stock: 11,052
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.069" (1.75mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.169" (4.30mm) |
| Contact Shape | Rectangular |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free |
| Features | Pick and Place, Solder Retention |
| Operating Temperature | -25°C ~ 85°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 1A (AC/DC) |
| Voltage Rating | 50VAC |
Submit your RFQ for CI1110M1VR0-NH and get a quote within 24 hours.
