4 POS 2.00MM(.079) SINGLE ROW SM

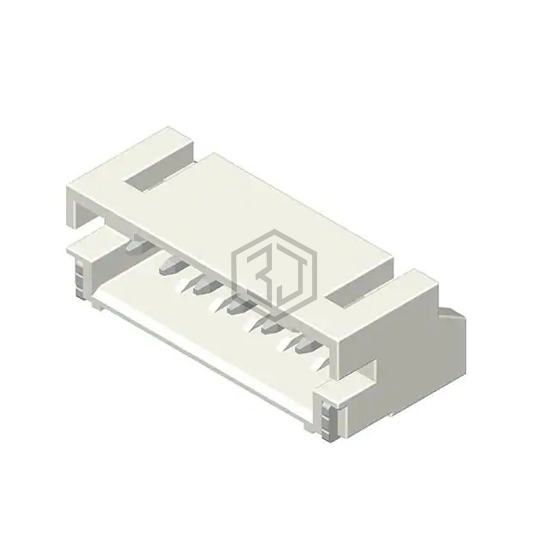

CI0104M1HR0-NH is a Rectangular Connectors - Headers, Male Pins manufactured by Cvilux USA. 4 POS 2.00MM(.079) SINGLE ROW SM. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -25°C ~ 105°C, voltage rating 250VAC/DC, contact material Brass.
In Stock: 1,685
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Detent Lock |
| Contact Length - Mating | 0.142" (3.61mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.217" (5.51mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 120.0µin (3.05µm) |
| Contact Finish - Post | Tin |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA6T), Nylon 6T, Halogen Free |
| Features | Solder Retention |
| Operating Temperature | -25°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Natural |
| Current Rating (Amps) | 2A |
| Voltage Rating | 250VAC/DC |
Submit your RFQ for CI0104M1HR0-NH and get a quote within 24 hours.
