1.27MM (.050") FEMALE TOP ENTRY

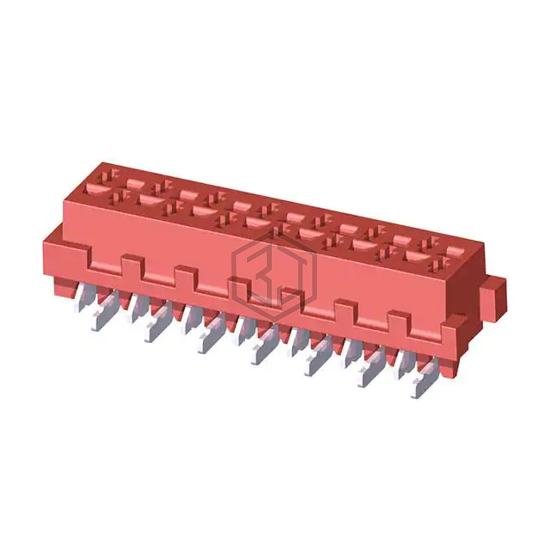

CA3210M130L is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Cvilux USA. 1.27MM (.050") FEMALE TOP ENTRY. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage rating 230VAC/DC, current rating (amps) 1.5A.
In Stock: 4,800
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Red |
| Insulation Height | 0.207" (5.26mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Pick and Place |
| Current Rating (Amps) | 1.5A |
| Voltage Rating | 230VAC/DC |
Submit your RFQ for CA3210M130L and get a quote within 24 hours.
