DC DC CONVERTER 3.3V +/-12V 30W

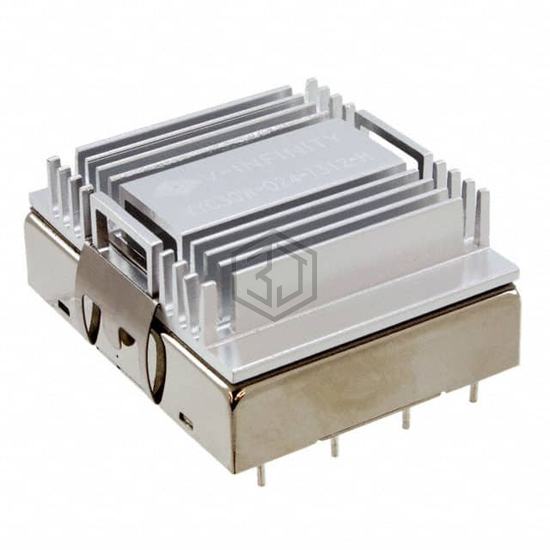

VYC30W-Q24-T312-H is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER 3.3V +/-12V 30W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 7-DIP Module, current - output (max) 4A, 625mA, 625mA.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Isolated Module |
| Number of Outputs | 3 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4A, 625mA, 625mA |
| Power (Watts) | 30 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 85% |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 2.00" L x 1.82" W x 0.91" H (50.8mm x 46.2mm x 23.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for VYC30W-Q24-T312-H and get a quote within 24 hours.
