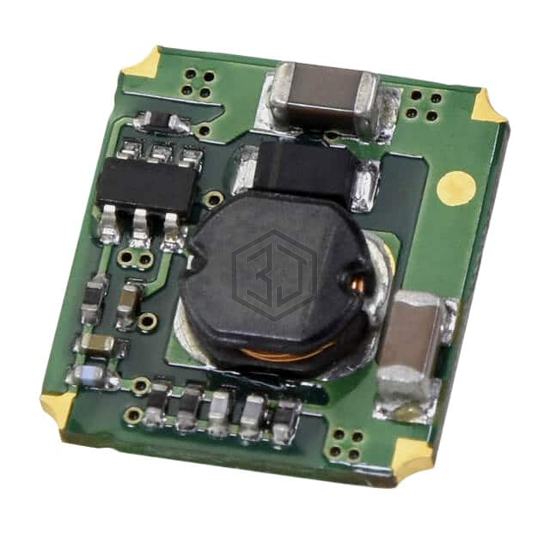

DC DC CONVERTER 3.3V 1.7W
VXO7803-500-M-TR is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER 3.3V 1.7W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (With Derating), package / case 4-SMD Module, current - output (max) 500mA.
In Stock: 10,549
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | 1.7 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 86% |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD Module |
| Size / Dimension | 0.53" L x 0.49" W x 0.14" H (13.5mm x 12.5mm x 3.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | EN |
| Standard Number | 55024; 55032 Class A |
Submit your RFQ for VXO7803-500-M-TR and get a quote within 24 hours.
