DC/DC CONVERTER 9V

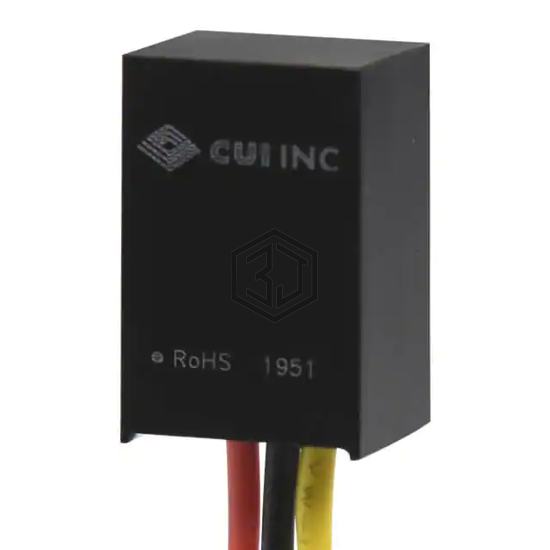

VX7809-500-W is a DC DC Converters manufactured by CUI Inc.. DC/DC CONVERTER 9V. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (With Derating), current - output (max) 500mA, size / dimension 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm).
In Stock: 307
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Linear Regulator Replacement |
| Voltage - Input (Min) | 12V |
| Voltage - Input (Max) | 36V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 93% |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Mounting Type | Through Hole |
| Size / Dimension | 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm) |
| Approval Agency | EN |
| Standard Number | 55024; 55032 Class A |
Submit your RFQ for VX7809-500-W and get a quote within 24 hours.
