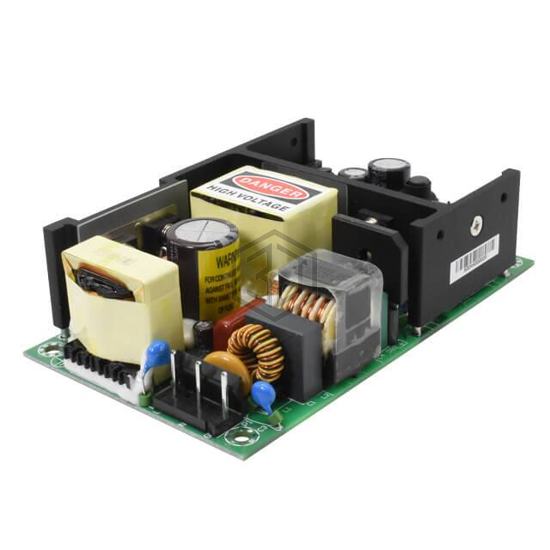

AC/DC CONVERTER 5V +/-12V 157W
VSBU-120C-T512A is a AC DC Converters manufactured by CUI Inc.. AC/DC CONVERTER 5V +/-12V 157W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm).
In Stock: 80
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 3 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 15 A |
| Current - Output 2 | 6 A |
| Current - Output 3 | 800 mA |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 157W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4.242 kV |
| Efficiency | 80% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | PFC |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) |
| Approval Agency | CE, cURus |
| Standard Number | 62368-1 |
