AC/DC CONVERTER 24V 120W

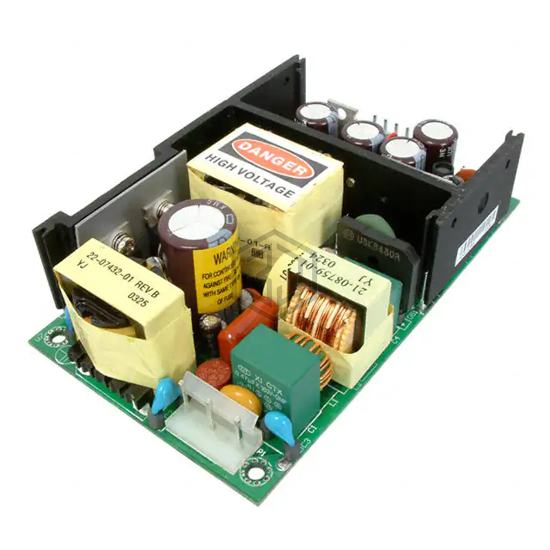

VSBU-120-24 is a AC DC Converters manufactured by CUI Inc.. AC/DC CONVERTER 24V 120W. Key specifications: mounting type Chassis Mount, operating temperature 0°C ~ 70°C (With Derating), voltage - input 90 ~ 260 VAC, size / dimension 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm).
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 260 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 120W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4.242 kV |
| Efficiency | 80% |
| Operating Temperature | 0°C ~ 70°C (With Derating) |
| Features | PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
| Approval Agency | CB Scheme, EN, IEC, SIQ, TUV, UL |
| Standard Number | 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3 |
Submit your RFQ for VSBU-120-24 and get a quote within 24 hours.
