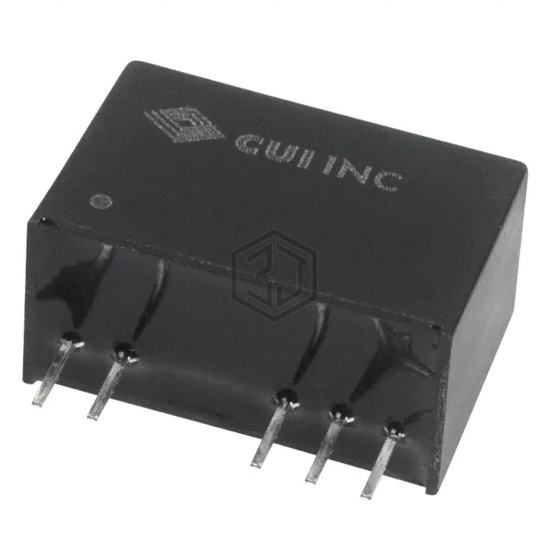

DC DC CONVERTER 17V -8.6V 2W
VQA-S15-D17-SIP is a DC DC Converters manufactured by CUI Inc.. DC DC CONVERTER 17V -8.6V 2W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, package / case 7-SIP Module, 5 Leads, current - output (max) 80mA, 40mA.
In Stock: 75
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 14.5V |
| Voltage - Input (Max) | 15.5V |
| Voltage - Output 1 | 17V |
| Voltage - Output 2 | -8.6V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 80mA, 40mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 80% |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB Scheme, IEC, UL |
| Standard Number | 60950-1 |
Submit your RFQ for VQA-S15-D17-SIP and get a quote within 24 hours.
