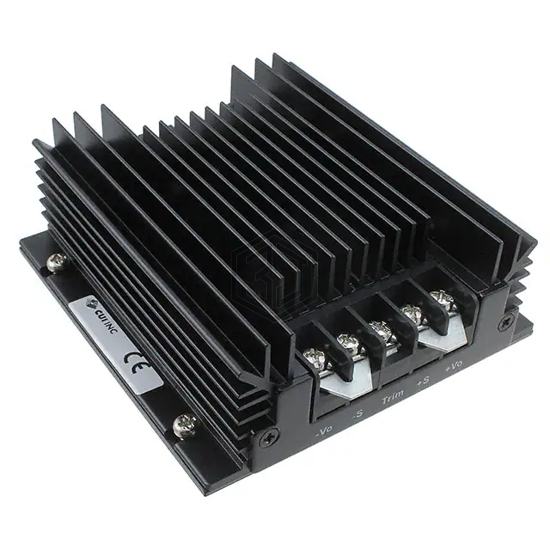

DC/DC CONVERTER 24V 100W
VHK100W-Q48-S24-DIN is a Industrial, DIN Rail Power Supplies manufactured by CUI Inc.. DC/DC CONVERTER 24V 100W. Key specifications: operating temperature -40°C ~ 85°C, current - output (max) 4.17A, size / dimension 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm), number of outputs 1.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 18V |
| DC Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 4.17A |
| Power (Watts) | 100W |
| Voltage - Isolation | - |
| Applications | - |
| Efficiency | 87% |
| Operating Temperature | -40°C ~ 85°C |
| Features | - |
| Size / Dimension | 4.23" L x 4.01" W x 2.07" H (107.4mm x 101.9mm x 52.6mm) |
| Approval Agency | CE |
| Standard Number | - |
Submit your RFQ for VHK100W-Q48-S24-DIN and get a quote within 24 hours.
