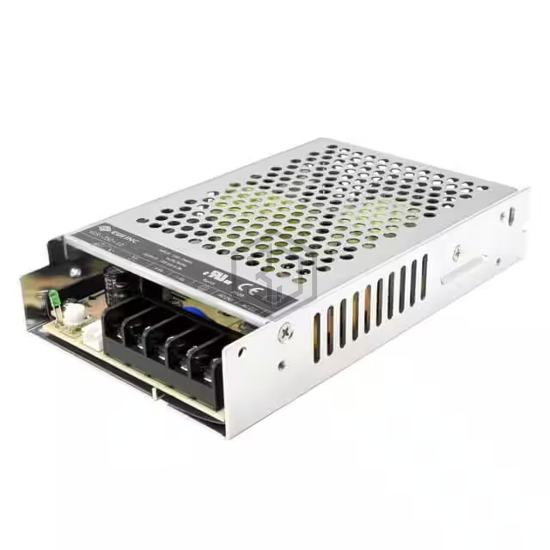

AC/DC CONVERTER 48V 77W
VGS-75D-48 is a AC DC Converters manufactured by CUI Inc.. AC/DC CONVERTER 48V 77W. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 70°C (With Derating), voltage - input 85 ~ 264 VAC, 120 ~ 370 VDC, size / dimension 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm).
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 1.6 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 77W |
| Applications | Household Appliances, ITE (Commercial) |
| Voltage - Isolation | 4 kV |
| Efficiency | 89% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, PFC, Remote On/Off, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
| Approval Agency | CE, cURus, EN, IEC, UL |
| Standard Number | 60335-1; 62368-1 |
