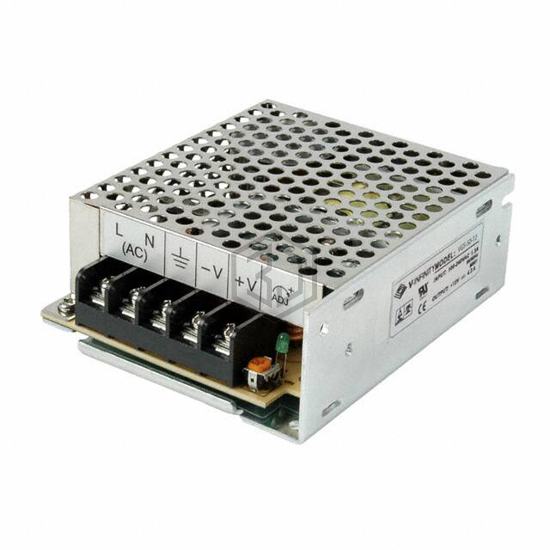

AC/DC CONVERTER 5V 50W
VGS-50-5 is a AC DC Converters manufactured by CUI Inc.. AC/DC CONVERTER 5V 50W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 88 ~ 264 VAC, size / dimension 3.90" L x 3.21" W x 1.40" H (99.0mm x 81.5mm x 35.5mm).
In Stock: 568
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 88 ~ 264 VAC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 10 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 50W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 4.242 kV |
| Efficiency | 83% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, DC Input Capable, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.90" L x 3.21" W x 1.40" H (99.0mm x 81.5mm x 35.5mm) |
| Approval Agency | CB Scheme, EN, IEC, SIQ, TUV, UL |
| Standard Number | 55024; 60950-1; 61000-3-2; 61000-3-3 |
Submit your RFQ for VGS-50-5 and get a quote within 24 hours.
