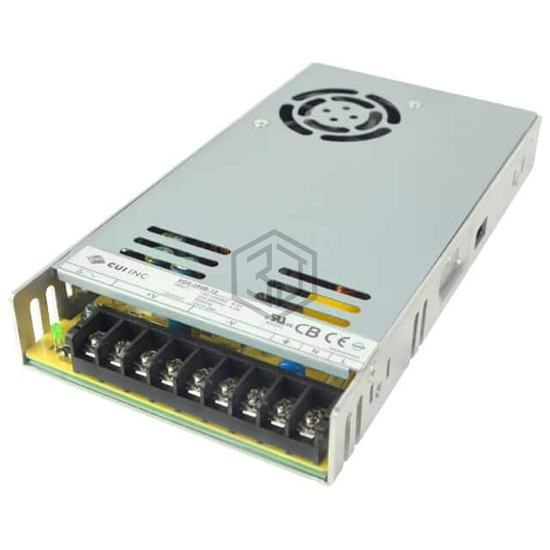

AC/DC CONVERTER 48V 350W
VGS-350B-48 is a AC DC Converters manufactured by CUI Inc.. AC/DC CONVERTER 48V 350W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 132 VAC, 180 ~ 264 VAC, size / dimension 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm).
In Stock: 14
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 132 VAC, 180 ~ 264 VAC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 7.3 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 350W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 1.5 kV |
| Efficiency | 89% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
| Approval Agency | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
| Standard Number | 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3 |
Submit your RFQ for VGS-350B-48 and get a quote within 24 hours.
