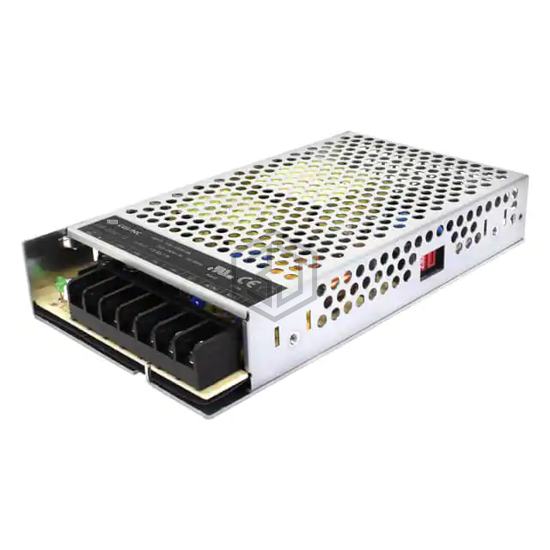

AC/DC CONVERTER 48V 211W
VGS-200C-48 is a AC DC Converters manufactured by CUI Inc.. AC/DC CONVERTER 48V 211W. Key specifications: mounting type Chassis Mount, operating temperature -30°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, 240 ~ 373 VDC, size / dimension 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm).
In Stock: 26
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC, 240 ~ 373 VDC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 4.4 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 211W |
| Applications | Household Appliances, ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 89.5% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
| Approval Agency | CE, cURus |
| Standard Number | 60335-1; 62368-1 |
